TD157 series

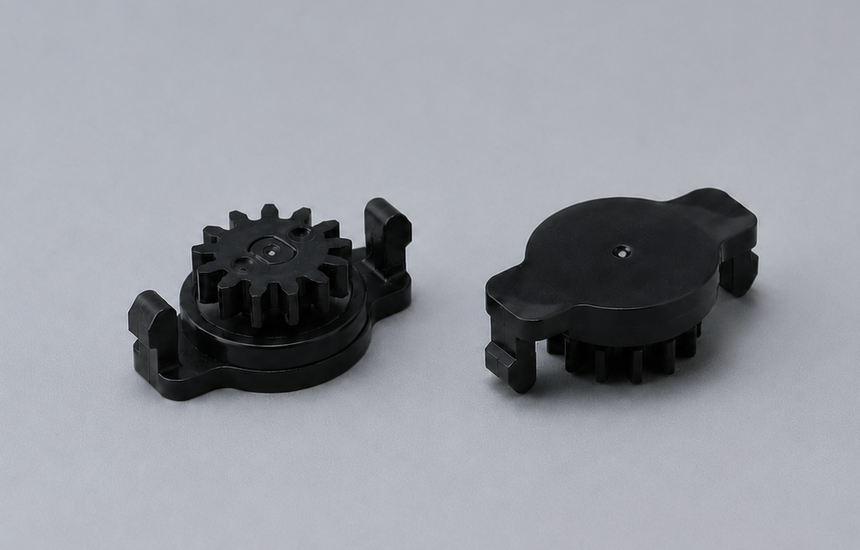

Product image
Type L

Bidirectional rotary damper | TD157

Features

  • Easy-to-install damper with snap-fit mounting
  • High design flexibility allows installation in any orientation (horizontal, vertical, or angled)
  • Tool-free installation
  • Facilitates easy centering during installation
  • One-way rotary damper
  • Low free-running torque
  • Outer mounting diameter of Ø14.9 mm (Compact and slim design)

Product lineup

Product name Torque [mN⋅m] (lbf⋅in) Damping direction Free-running torque [mN･m] ( lbf･in)
TD157L1-140 14.0  (0.12) CCW 0.5 (0.004)
TD157L1-210 21.0  (0.19) CCW 0.5 (0.004)

Product information

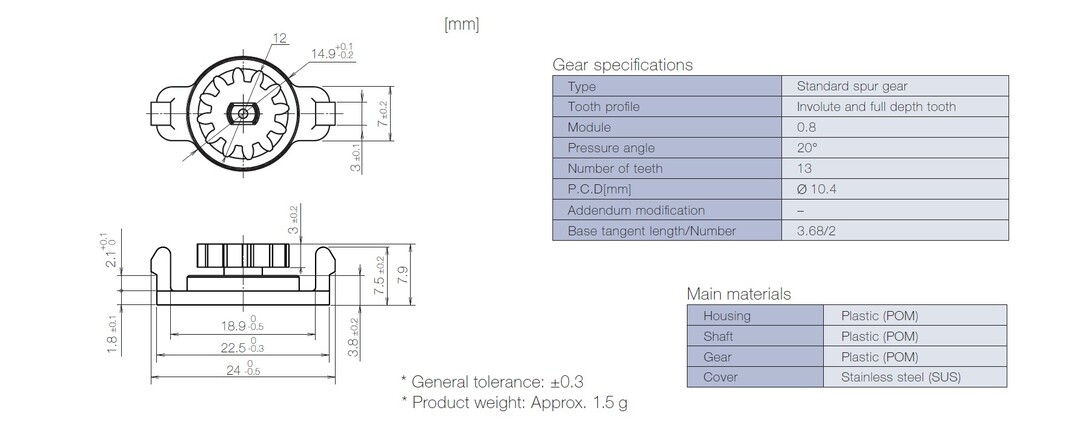

Product information

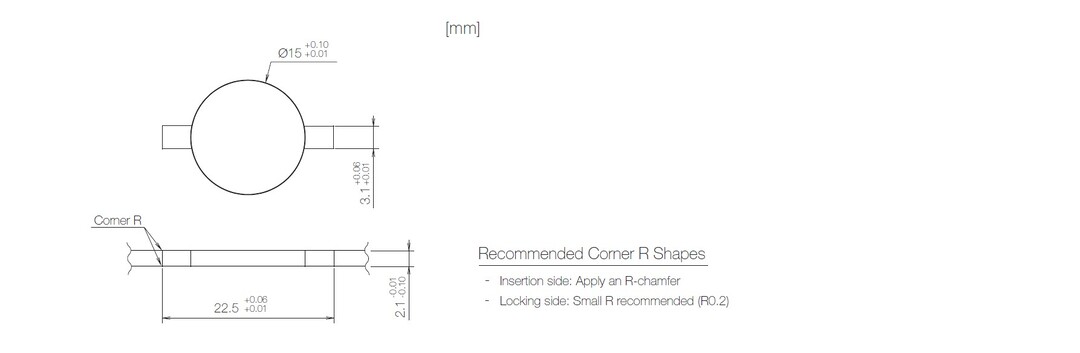

Dimensions related to mounting

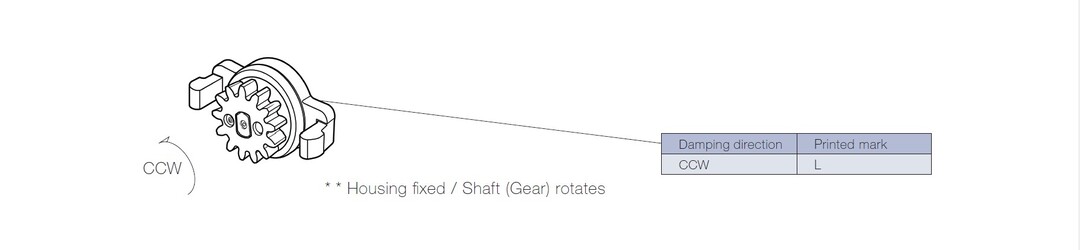

Damping directions

Product specifications

*Find the catalog below.

Catalog・Cad Download・Contact us

We also have a page with examples of simple custom-ordered rotary dampers.
On that page, you will find examples of parts added to standard rotary damper products and examples of partially custom-ordered products.
