TD96 series
Product image
Type R (CW)
Type L (CCW)
Type (G-L)

Easy to install | TD96

Features

‐ Outer mounting diameter of Ø 25 mm
‐ Unidirectional rotary damper
‐ The mounting flange corresponds to the bottom face

Product lineup

Product name Torque [ｍN⋅m] (lbf⋅in) Damping direction Cap color
TD96R1-500 50.0 ± 10 (0.44 ± 0.09) CW Dark gray
TD96R1-1000 100.0 ± 20 (0.89 ± 0.18) CW Dark gray
TD96R1-1500 150.0 ± 30 (1.33 ± 0.27) CW Dark gray
Product name Torque [ｍN⋅m] (lbf⋅in) Damping direction Cap color
TD96L1-500 50.0 ± 10 (0.44 ± 0.09) CCW Gray
TD96L1-1000 100.0 ± 20 (0.89 ± 0.18) CCW Gray
TD96L1-1500 150.0 ± 30 (1.33 ± 0.27) CCW Gray

The torque of all rotary dampers is measured at a rotational speed of 20 min-1.
The products without gear have “(G-L)” at the end of the product name.
Bidirectional TD96 rotary dampers are not available.

Product information

Product information

Product information of TD96 rotary damper

Dimensions related to mounting

Dimensions related to mounting of TD96 rotary damper

Damping directions

Damping direction of the shaft

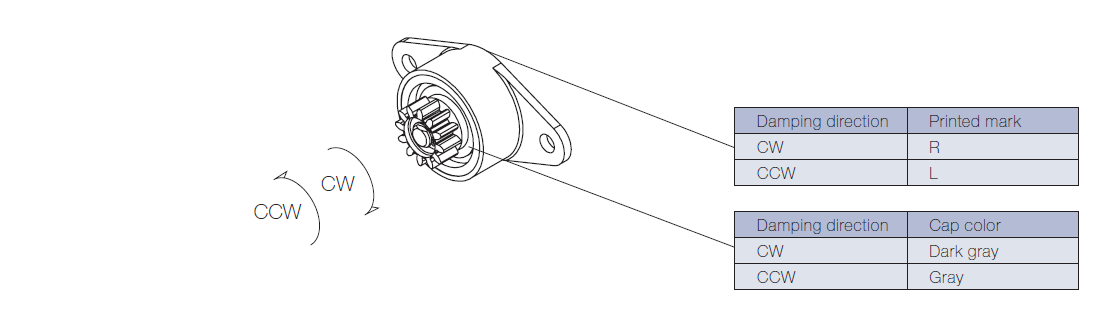

Damping directions of TD96 rotary damper

Product specifications

– Durability
– Temperature characteristics

*Find the catalog below.

Catalog・Cad Download・Contact us

We also have a page with examples of simple custom-ordered rotary dampers.
On that page, you will find examples of parts added to standard rotary damper products and examples of partially custom-ordered products.

CATALOG

CAD DOWNLOAD

CONTACT US
