Can be inserted in either direction | TD148

TD148 series

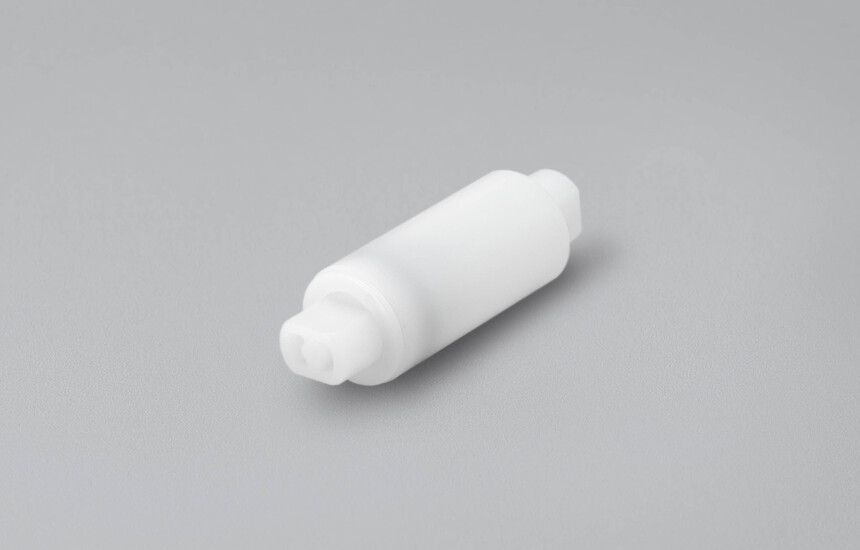

Product image

Type A (CW)

Type B (CCW)

Horizontal & Vertical use Partial rotation Plastic material Long life Small size
0.002 to 0.10 N･m 0.11 to 0.50 N･m
Outer diameter 11 to 15 mm

Can be inserted in either direction | TD148

Contents

Features
Product lineup
Product information
Catalog・Cad Download・Contact us
Contact us

Features

‐ The form of the TD148 is symmetrical, so it can be inserted in either direction
‐ The smallest partial rotation angle damper (Ø 11 mm)
‐ Equal in shape to and different in operation feeling from TD73
‐ Best-selling products

Product lineup

Product name	Torque [N⋅m] (lbf⋅in)	Damping direction	Shaft color
TD148A1- 1K	0.10 (0.89)	CW	Natural
TD148A1- 2K	0.20 (1.77)	CW	Natural
TD148A1- 3K	0.30 (2.66)	CW	Natural

Product name	Torque [N⋅m] (lbf⋅in)	Damping direction	Shaft color
TD148B1- 1K	0.10 (0.89)	CCW	Sky blue
TD148B1- 2K	0.20 (1.77)	CCW	Sky blue
TD148B1- 3K	0.30 (2.66)	CCW	Sky blue

Product information

Dimensions related to mounting

Opening angle

Damping directions

Rotation directions of the shaft to which torque is applied

Product specifications

– Durability
– Temperature characteristics

*Find the catalog below.

Catalog・Cad Download・Contact us

We also have a page with examples of simple custom-ordered rotary dampers.
On that page, you will find examples of parts added to standard rotary damper products and examples of partially custom-ordered products.
